Thin Client Models

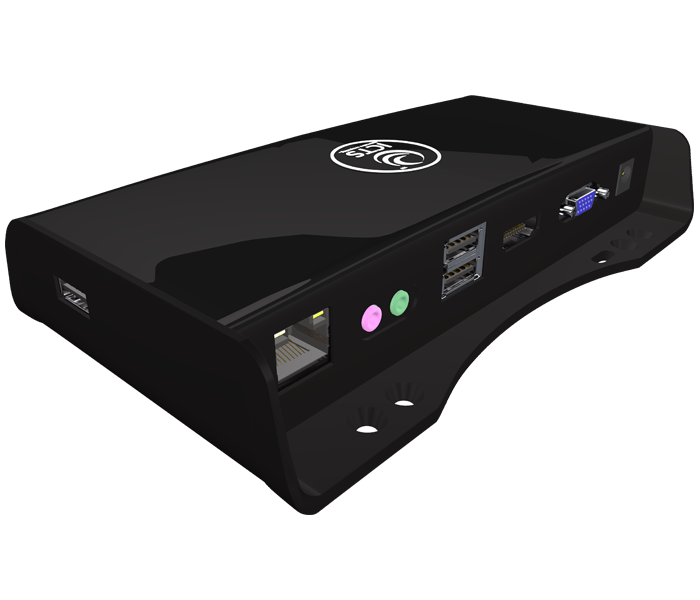

FL-100

ARM Dual
Core
4 GB FLASH
512 MB RAM
>> See All Specifications

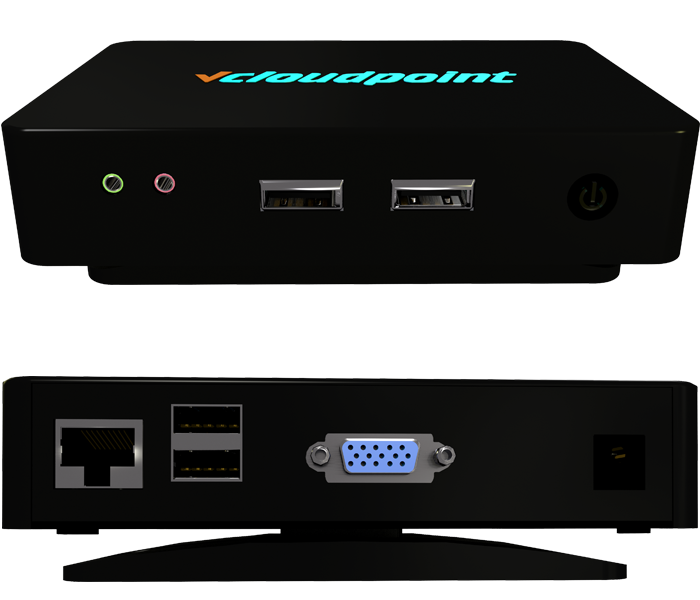

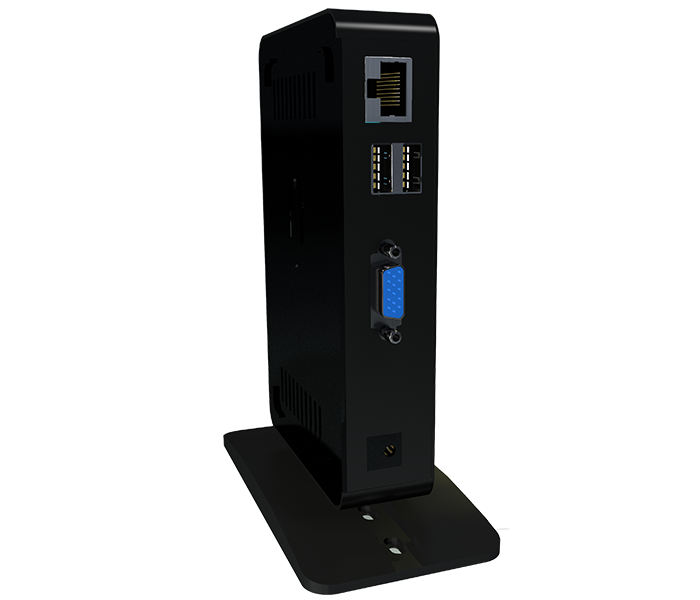

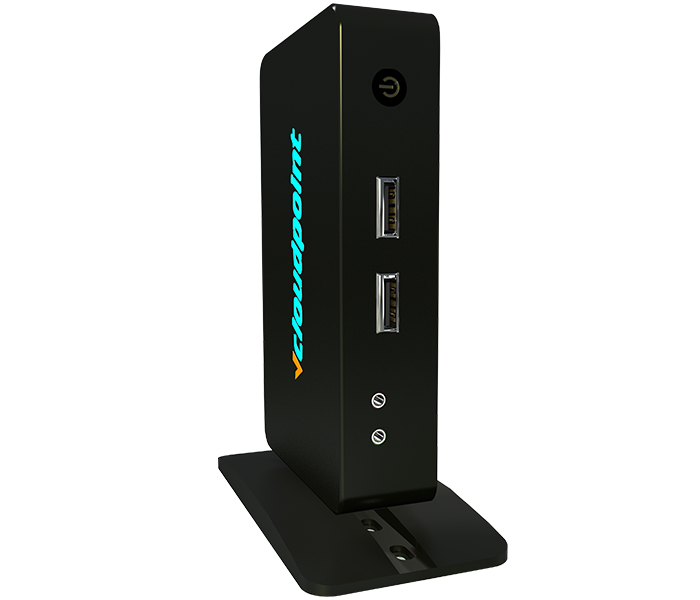

S-100

Zero Client
Video
and Voice
Supported
>> See All Specifications

Seamless Connectivity

Drastic Reduction in
- Capital Cost
- Maintenance Cost
- Power Consumption
CPU Model SOC
Protocal RDP7.1
Memory DDR3 512MB RAM
Flash 4GB
OS Embedded linux 3.0 OS
WI-FI Optional
OS supported Linux / Windows XP / Windows 7(Recommended Win 7)Server 2003-/2008/2012
Output 1*HDMI port,1*VGA port,4* USB2.0 port,1*Audio output port
Input "1*power 5V-2V port,1* LAN port,1*Micro SD Slot,1* Audio input port"
Shell color Black
Size 145x92x25mm
weight 0.5 KG
Power 5V/2A
Consumption 5W
Display Dual Mode Display HDMI/VGA
Back Panel I/O Ports 1x VGA port ,4x USB 2.0 ports ,1x RJ45 port
Side Panel I/O 1x HDMI port,1x Micro SD Slot
Front Panel I/O 2x USB 2.0 ports,audio port jacks
Colour Black
CPU Model Zero Client
Protocal Dynamic Desktop Protocol (DDP)
Internal Hardware All solid-state design. No moving parts, no fans, no local user storage.
Reliability (MTBF) >100,000 hours (calculated using Bellcore Issue 6 TR-332, Case 2, Part I at 40° C)
Environmental 0 to 40 degrees Celsius 10 to 85% relative humidity (non-condensing) No moving parts permits use in high dust / particulate / vibration environments.
Data security No local data storage on device. USB data access controlled by user policy
OS supported Microsoft Windows XP SP3 Pro 32bits, 7, 8 ,8.1 & 10 (excluding Starter and Home Basic editions),Server 2003 32 bits, 2008R2, 2012, 2012R2, Multipoint Server 2011, 2012.
Output 1*VGA port,4* USB2.0 port,1*Audio output port
Input "1*power 5V-2V port ,1* LAN port 10M/100Mbps,1* Audio input port"
Shell color Black
Size 124(W)x75(D)x26(H) mm
weight 125g for device, 70g for power supply, 400g for shipping weight
Consumption Standby: 0.2w; working: 5W (independent of external USB devices)
Lan 10/100 Mbps Ethernet (RJ45)
Video Full HD 1080p for all media formats (Server-side rendering for local and web- embedded videos on most media players; Client-side rendering for local videos on VLC player 2.1.5 or newer versions)
Audio 16 bit, 44.1Khz/ 48Khz audio input / output via 3.5mm stereo jacks
Back Panel I/O Ports "2× USB 2.0 ports,1× 5V DC in,1× VGA monitor,1× RJ45 Ethernet"
Front Panel I/O "2 × USB 2.0 ports,1× microphone jack,1× speaker jack,1× power/reset switch"
Colour Black
